Anyone who has sat through a site plan review knows the moment. The layout looks fine until someone asks where the tank actually goes. That single question about orientation – vertical or horizontal – often reshapes the rest of the drawing.
It sounds like a minor detail. In practice, it touches everything from foundation design to fire code compliance to how fast a project can move from quote to installation. Understanding the trade-offs early saves a lot of redesign later.
Same Job, Different Geometry
Both tank types do the same basic work: contain a liquid safely, whether that’s diesel, gasoline, water, biofuel, or a process chemical. The difference is orientation and, by extension, how each one distributes weight, uses land, and gets built.

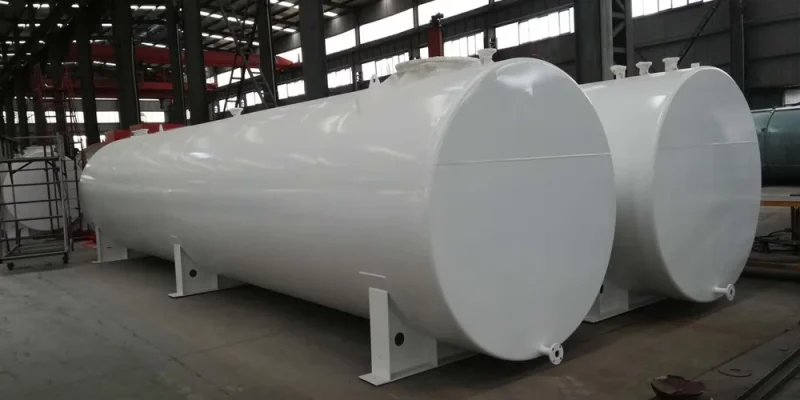

Horizontal tanks lie on their side, usually supported by two saddles. Vertical tanks stand upright on a ring wall, slab, or engineered foundation. That single geometric choice cascades into almost every other decision a facility has to make.
Where Horizontal Tanks Tend to Win
Horizontal tanks are the default choice for a lot of aboveground fuel storage – retail fueling stations, fleet yards, standby generators at hospitals or data centers, construction sites, and marinas. Part of the appeal is practical: a horizontal tank has a low center of gravity and a modest height profile.
That matters on sites with overhead power lines, low clearance, or nearby structures. It also matters for logistics. Shop-fabricated horizontal tanks, commonly built to UL 142, can typically be manufactured off-site, shipped whole on a flatbed, and set in place in a single lift, which shortens installation timelines considerably.
Capacity-wise, horizontal tanks usually cover the low-to-mid range, roughly 500 to 30,000 gallons, though larger custom units exist. Double-wall construction with interstitial monitoring is standard practice for fuel and other regulated liquids, giving operators a built-in secondary containment layer without needing a separate berm or dike.
Where Vertical Tanks Tend to Win
Vertical tanks take over once volume becomes the priority and land is limited. Because they store more liquid per square foot of footprint, they’re the standard for bulk terminals, refineries, agricultural bulk storage, biofuel facilities, and water treatment plants where large capacity in a tight footprint matters more than a low profile.
Larger field-erected vertical tanks are typically engineered to API Standard 650, the long-standing benchmark for welded steel oil storage tanks, which governs everything from shell thickness calculations to roof design and nozzle placement. Smaller shop-built vertical tanks may fall under UL 142 instead, depending on size and application.
The trade-off is height and structural complexity. Taller tanks need to account for wind loading, seismic considerations in some regions, and a properly engineered foundation to prevent settling. None of that is prohibitive, but it does mean vertical installations often involve more upfront civil and structural engineering than a comparable horizontal unit.
Footprint, Access, and Site Planning
Site constraints usually settle the debate before cost does. A facility with plenty of land but limited vertical clearance – think fuel farms near flight paths or sites under transmission lines – will lean horizontal almost by default.
A facility on a tight urban parcel, or one that needs to maximize capacity within an existing containment area, will often go vertical instead. Some operations end up needing both: horizontal day tanks feeding equipment, paired with a larger vertical bulk tank for reserve storage.
Access for inspection and maintenance also differs. Horizontal tanks generally offer simpler bottom access and shorter runs for gauging and leak-detection sensors. Vertical tanks may require internal floor inspections and more attention to foundation condition over time, particularly for older single-wall installations.
Fabrication, Cost, and Lead Time
Horizontal tanks are almost always shop-built, which keeps quality control consistent and shortens the path from order to delivery. Vertical tanks can be shop-built at smaller capacities, but once volumes climb into the tens of thousands of gallons, field erection becomes more common – and that adds both cost and schedule.
Neither design is inherently cheaper. A 10,000-gallon horizontal tank and a 10,000-gallon vertical tank will often land in a similar price range; the real cost driver is usually site work, foundation requirements, and how much custom engineering the project needs.
Corrosion protection is worth budgeting for either way. Coatings, cathodic protection, and double-wall construction all extend service life, and many manufacturers back that work with multi-decade corrosion warranties – a detail worth confirming regardless of which geometry you choose.
Codes, Certifications, and Regulatory Overlap
Both tank types fall under overlapping layers of code. NFPA 30, the Flammable and Combustible Liquids Code, sets the baseline for how flammable and combustible liquids are stored and separated, regardless of orientation. Underwriters Laboratories’ UL 142 covers shop-fabricated atmospheric steel tanks, while larger vertical tanks typically reference API Standard 650 for design and fabrication.
If any portion of the system is buried, the EPA’s underground storage tank program adds its own layer of requirements around leak detection, corrosion protection, and release reporting – separate from whatever applies aboveground. State environmental agencies frequently layer additional rules on top of the federal baseline, so it’s worth checking local requirements before finalizing a design.
None of these codes dictate orientation outright. They shape the details – wall thickness, monitoring, containment – once the vertical-versus-horizontal decision has already been made based on site and capacity needs.
Making the Call for Your Site
There’s rarely a universally “better” option – only a better fit for the application. Standard fuel storage at a retail site, generator support, or a construction yard usually points toward horizontal. Bulk storage, process liquids, or capacity-constrained land usually points toward vertical.
Unusual sites complicate that simple split. Irregular pads, compartmentalized product requirements, or unusual clearance restrictions often push a project toward specialty tank configurations – custom-shaped units, compartmentalized tanks, or hybrid designs built around a specific footprint rather than a standard catalog size.
Manufacturers who handle both geometries regularly, including Austin-based Tex Tanks, tend to see these edge cases often enough to have a reasonable design already worked out before the first sketch is drawn.
Whichever direction a project ends up going, the decision is worth making early, with input from whoever is designing the containment area and pulling permits. Retrofitting a foundation for the wrong orientation costs far more than getting the geometry right the first time.
